Misago

Tested Versions

Before You Begin

Common Notes

  1. The OpenID Connect 1.0 client_id parameter:
    1. This must be a unique value for every client.
    2. The value used in this guide is merely for demonstration purposes and you can theoretically use nearly any alphanumeric string.
  2. The OpenID Connect 1.0 secret parameter:
    1. The value used in this guide is merely for demonstration purposes and you should absolutely not use this in production and should instead utilize the How Do I Generate Client Secrets FAQ.
    2. This string may be stored as plaintext in the Authelia configuration but this behaviour is deprecated and is not guaranteed to be supported in the future. See the Plaintext guide for more information.
  3. The Configuration example for Authelia is only a portion of the required configuration and it should be used as a guide in conjunction with the standard OpenID Connect 1.0 Configuration guide.

Assumptions

This example makes the following assumptions:

  • Application Root URL: https://misago.example.com
  • Authelia Root URL: https://auth.example.com
  • Client ID: misago
  • Client Secret: insecure_secret

Configuration

Application

To configure Misago to utilize Authelia as an OpenID Connect 1.0 Provider:

  1. Sign in to the Misago Admin Panel
  2. Visit Settings and click OAuth 2
  3. Configure the Following:
    1. Basic settings:
      1. Provider name: authelia
      2. Client ID: misago
      3. Client Secret: insecure_secret

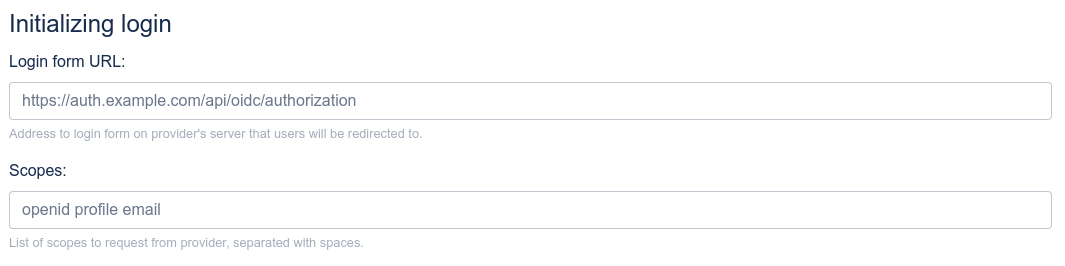

    2. Initializing Login:
      1. Login form URL: https://auth.example.com/api/oidc/authorization
      2. Scopes: openid profile email

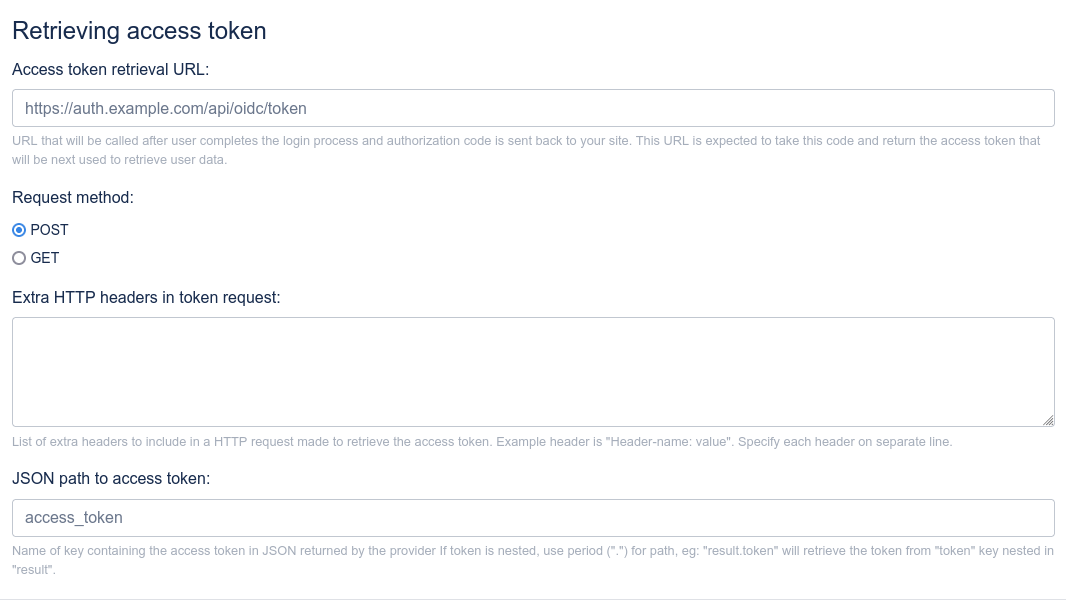

    3. Retrieving access token:
      1. Access token retrieval URL: https://auth.example.com/api/oidc/token
      2. Request method: POST
      3. JSON path to access token: access_token

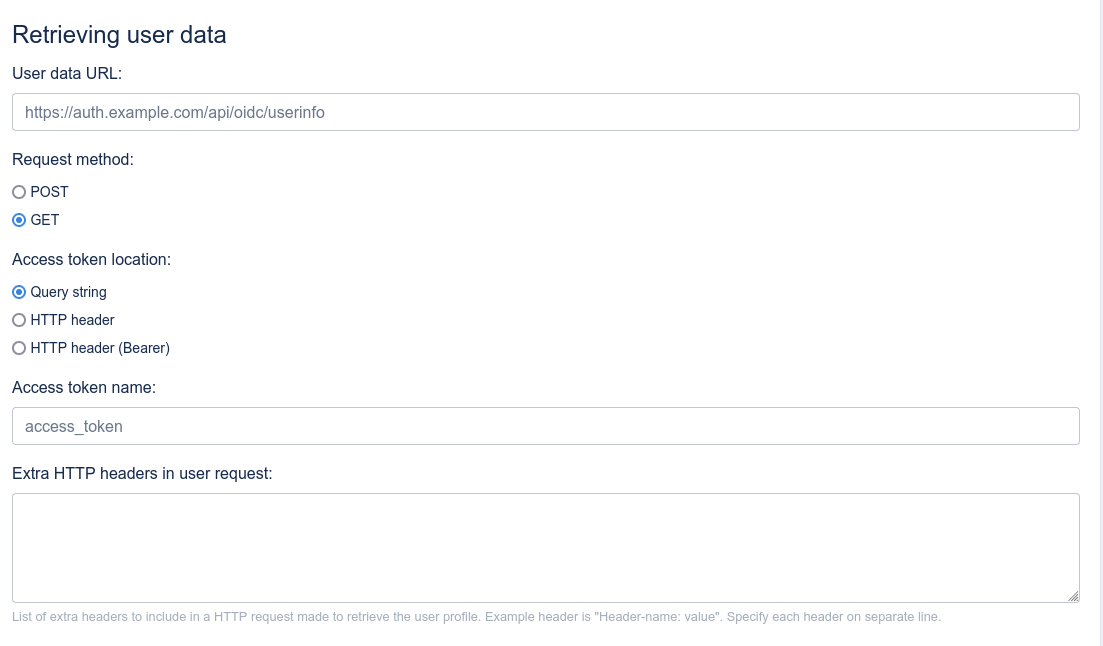

    4. Retrieving user data:
      1. User data URL: https://auth.example.com/api/oidc/userinfo
      2. Request method: GET
      3. Access token location: Query string
      4. Access token name: access_token
    5. User JSON mappings:
      1. User ID path: sub
      2. User name path: name
      3. User e-mail path: email
  4. Save the configuration
Settings
Basic Settings
Initializing Login
Retrieving access token
Retrieving user data
User JSON mappings

Authelia

The following YAML configuration is an example Authelia client configuration for use with Misago which will operate with the above example:

identity_providers:
  oidc:
    ## The other portions of the mandatory OpenID Connect 1.0 configuration go here.
    ## See: https://www.authelia.com/c/oidc
    clients:
    - id: misago
      secret: '$pbkdf2-sha512$310000$c8p78n7pUMln0jzvd4aK4Q$JNRBzwAo0ek5qKn50cFzzvE9RXV88h1wJn5KGiHrD0YKtZaR/nCb2CJPOsKaPK0hjf.9yHxzQGZziziccp6Yng'  # The digest of 'insecure_secret'.
      public: false
      authorization_policy: two_factor
      scopes:
        - openid
        - profile
        - email
      redirect_uris:
        - https://misago.example.com/oauth2/complete/
      grant_types:
        - authorization_code
      response_types:
        - code
      response_modes:
        - query
      userinfo_signing_algorithm: none

See Also
