PowerDNS Admin

Tested Versions

Before You Begin

Important Reading

This section contains important elements that you should carefully consider before configuration of an OpenID Connect 1.0 Registered Client.

Common Notes

  1. The OpenID Connect 1.0 client_id parameter:
    1. This must be a unique value for every client.
    2. The value used in this guide is merely for readability and demonstration purposes and you should not use this value in production and should instead utilize the How do I generate a client identifier or client secret? FAQ. We recommend 64 random characters but you can use any arbitrary value that meets the other criteria.
    3. This must only contain RFC3986 Unreserved Characters.
    4. This must be no more than 100 characters in length.
  2. The OpenID Connect 1.0 client_secret parameter:
    1. The value used in this guide is merely for demonstration purposes and you should absolutely not use this value in production and should instead utilize the How do I generate a client identifier or client secret? FAQ.
    2. This string may be stored as plaintext in the Authelia configuration but this behaviour is deprecated and is not guaranteed to be supported in the future. See the Plaintext guide for more information.
    3. When the secret is stored in hashed form in the Authelia configuration (heavily recommended), the cost of hashing can, if too great, cause timeouts for clients. See the Tuning the work factors guide for more information.
  3. The configuration example for Authelia:
    1. Only contains an example configuration for the client registration and you MUST also configure the required elements from the OpenID Connect 1.0 Provider Configuration guide.
    2. Only contains a small portion of all of the available options for a registered client and users may wish to configure portions that are not part of this guide or configure them differently, as such it’s important to both familiarize yourself with the other options available and the effect of each of the options configured in this section by looking at the OpenID Connect 1.0 Clients Configuration guide.

Assumptions

This example makes the following assumptions:

  • Application Root URL: https://powerdns.example.com/
  • Authelia Root URL: https://auth.example.com/
  • Client ID: powerdns
  • Client Secret: insecure_secret

Configuration

Authelia

The following YAML configuration is an example Authelia client configuration for use with PowerDNS Admin which will operate with the application example:

configuration.yml
identity_providers:
  oidc:
    ## The other portions of the mandatory OpenID Connect 1.0 configuration go here.
    ## See: https://www.authelia.com/c/oidc
    clients:
      - client_id: 'powerdns'
        client_name: 'PowerDNS Admin'
        client_secret: '$pbkdf2-sha512$310000$c8p78n7pUMln0jzvd4aK4Q$JNRBzwAo0ek5qKn50cFzzvE9RXV88h1wJn5KGiHrD0YKtZaR/nCb2CJPOsKaPK0hjf.9yHxzQGZziziccp6Yng'  # The digest of 'insecure_secret'.
        public: false
        authorization_policy: 'two_factor'
        redirect_uris:
          - 'https://powerdns.example.com/oidc/authorized'
        scopes:
          - 'openid'
          - 'profile'
          - 'groups'
          - 'email'
        response_types:
          - 'code'
        grant_types:
          - 'authorization_code'
        userinfo_signed_response_alg: 'none'

Application

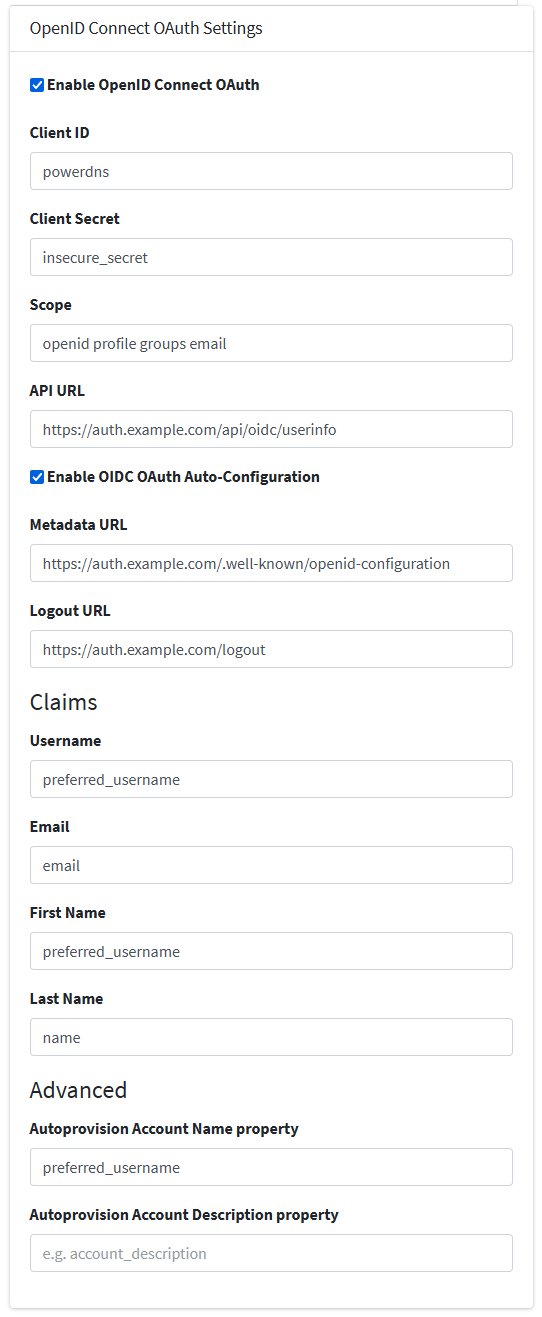

To configure PowerDNS Admin to utilize Authelia as an OpenID Connect 1.0 Provider:

  1. Visit Settings
  2. Visit Authentication
  3. Visit OpenID Connect OAuth
  4. Set the following values:
    1. Enable Enable OpenID Connect OAuth
    2. Client ID: powerdns
    3. Client Secret: insecure_secret
    4. Scopes: openid profile groups email
    5. API URL: https://auth.example.com/api/oidc/userinfo
    6. Enable Enable OIDC OAuth Auto-Configurationh
    7. Metadata URL: https://auth.example.com/.well-known/openid-configuration
    8. Username: preferred_username
    9. Email: email
    10. Firstname: preferred_username
    11. Last Name: name
    12. Autoprovision Account Name property: preferred_username
    13. Autoprovision Account Description property : name

*Note: Currently, Authelia only supports the preferred_username and name claims under the profile scope. However PowerDNS-Admin only supports a FirstName LastName system, where the two are separate, instead of using the name claim to fetch the full name. This means that the names in the system are incorrect. (See linked ticket( https://github.com/authelia/authelia/issues/4338))

PowerDNS Admin

*Note: Currently, Authelia only supports the preferred_username and name claims under the profile scope. However PowerDNS-Admin only supports a FirstName LastName system, where the two are separate, instead of using the name claim to fetch the full name. This means that the names in the system are incorrect. (See linked ticket( https://github.com/authelia/authelia/issues/4338))
